Llumins E5

LLUMINS E5


Llumins E5 Logo


SPECIAL FEATURES

LED illumination


18mm field of view


Adjustable diopter


Achromatic or Plan Achromatic objectives


Double layered mechanical stage


Lightweight, easy to carry frame



Introduction:

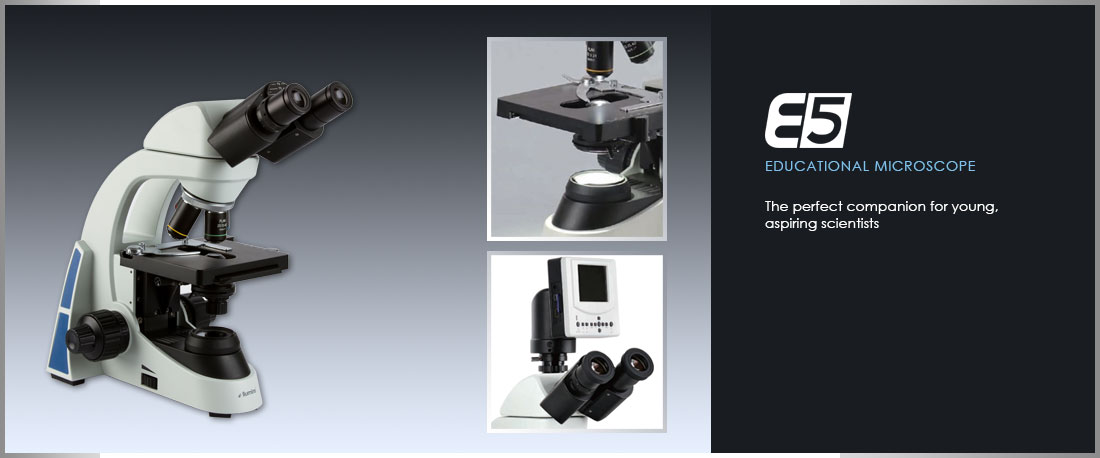

Llumins E5The new E-5 microscope is the perfect companion for the young scientists targeting a wide range in the educational market. Small and compact with excellent optics, it includes a eyepiece pointer as a standard feature to assist with training. The microscope is versatile and easy to operate and its internal battery makes it easy to use in the field for up to 21 hours.


Application:


Educational, Frozen sections, Fieldwork


Specifications:


Model
Llumins E5
Optical System
Finite colour corrected optical system
Eyepiece
Wide field plan eyepiece PL10X/18mm with/without reticle; PL10X/18mm with/without pointer
Objectives
- Achromatic objective ( 4X, 10X, 40XS, 100XS )
- Plan achromatic objective ( 4X, 10X, 20X, 40XS, 100XS )
Viewing Head
30° inclined monocular head
30° inclined binocular head, interpupillary distance: 50-75mm, ±5 diopter adjustable
30° inclined trinocular head, splitting ratio R:T=80:20, interpupillary distance: 50-75mm, ±5 diopter adjustable
30° inclined digital viewing head, built-in 3.0 mega pixels CMOS, USB output; interpupillary distance: 50-75mm, ±5 diopter adjustable
Nose Piece
Quadruple nosepiece
Stage
132mmX140mm double layered mechanical stage, moving range: 50mmX76mm, precision: 0.1mm
Condenser
N.A.1.25 Abbe condenser with iris diaphragm
Optional Accessories
Filters for transmitted light: blue/yellow/green
Camera accessories: 0.35X/0.5X/1X focusing C-mount



E5 Overview:


E5 Overview E5 Overview
