LLUMINS XCAM CAMERA


MAIN SPECS

HD output to projector

Requires: TV or PC screen with HDMI

Resolution 1280 x 720

5 Mega Pixels

CMOS

C-mount size to use: 1/2 C-mount (0.5)



Camera Image Preview

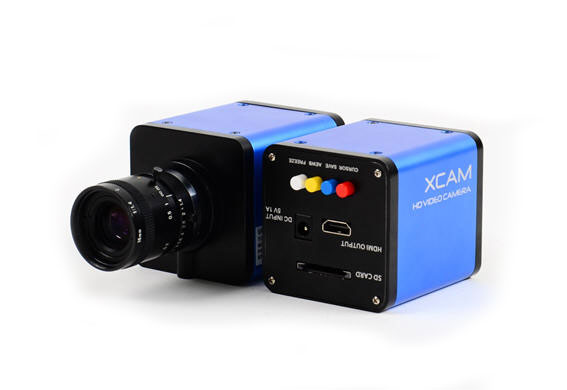

Llumins XCAM Overview:


Llumins XCAM CameraLlumins XCAM has specifically been designed for live video presentations and training. It offers a cost effective alternative to multi headers. Bypassing the need for a PC, the Xcam microscope camera connects directly to any output device with a HDMI input, such as a projector, TV or PC screen. It requires no software installation and delivers HD quality video.

What makes it ideal is that its onboard software does auto white balance and exposure on the fly with no need for additional input from the user. Its a true plug and play device which instantly displays the specimen image. Unlike the traditional microscope c-mount camera, it eliminates the need to make colour or white balance adjustments each time a variety of different specimen types are displayed. It can also take a snapshots directly onto a SD memory card to save images for later viewing on a PC


Application:


Direct, live interactive presentations or training for bright field microscopy without using a PC.


Llumins Xcam

Specifications:


HARDWARE CONFIGURATION
Image Pickup Device
Micron MT9P031 CMOS(Color)
Scan Mode
Progressive
Max. Resolution
1280 x 720
Sensor Size (Diagonal)
1/2.5“ (5.70mm(H) x 4.28mm(V), Diagonal 7.13mm)
Pixel Size
2.2μm x 2.2μm
G Sensitivity
1.4 V/lux-sec (550nm)
Dynamic Range
70.1dB
SN Ratio
38.1db
Spectral Range
380-650nm (with IR-cut Filter)
Video Format & Frame Rate
30fps @1280 x 720
Binning
1 x 1
Exposure
0.21ms~33ms,Auto & Manual
White Balance
Auto & Manual
Color Rendering Technique
Ultra-Fine™ Color Engine
INTERFACE & BUTTON FUNCTIONS
Llumins Xcam
RED: Cursor ON/OFF
BLUE: Save Image to SD Card
YELLOW: AEWB ON/OFF
WHITE: Video Stream / Freeze
SLOTS: 1X HDMI output port
1X SD card slot
1X Power input slot
1X Remote switch slot
OVERALL DIMENSIONS
Width X Depth X Height
68 mm (2.67”) X 68 mm (2.67”)X 92mm (3.62”)
Shipping Weight
0.25 kg (0.55 lbs)
OPERATING ENVIRONMENT
Operating Temperature
-10°C ~ 50°C
Storage Temperature
-20°C ~ 60°C
Operating Humidity
30~80%RH
Storage Humidity
10~60%RH
Power Supply
DC 5V over PC USB Port
SOFTWARE ENVIRONMENT
Operating System
Microsoft® Windows® XP / Vista / 7 / 8 (32 & 64 bit)
OS X (Mac OS X)
Linux Appple MA
PC Requirements
CPU: Equal to Intel Core2 2.8GHz or Higher
Memory: 2GB or More
USB Port: USB2.0 High-speed Port
Display: 17" or Larger
CD-ROM
